JUNO
Batch Plasma System
Applications
Juno is a flexible, standalone batch plasma cleaning system. It can be used consistently in a manufacturing environment to clean and activate the surface of oddly shaped parts.

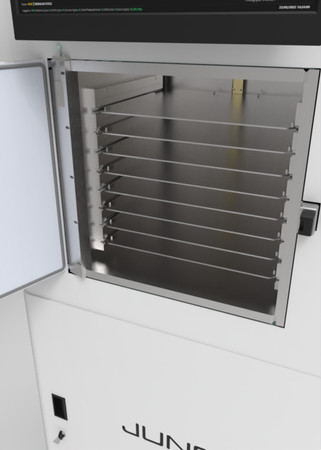

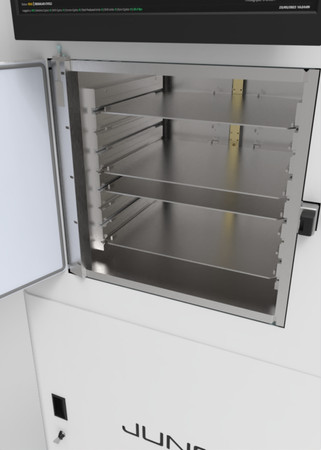

Juno's plasma chamber design includes simple shelves that can be arranged at different heights to allow multiple products sizes. Each shelf can be either:
connected to the RF signal to deliver a RIE (Reactive Ion Etching) plasma process or,
grounded to deliver a PE (Plasma Etching) plasma process
This allows to carefully select the plasma energy levels and treat sensitive products.
Juno has a specific gas distribution system that allows optimal gas flow and plasma reach inside complex geometries that may occur in the products to be treated.
In manufacturing, Juno can be used for:
Plasma cleaning before wire-bonding on modules
Plasma cleaning before transfer molding on modules
Plasma cleaning before under-fill
Plasma cleaning on PCBs, BGA substrates
Give its simple shelves design, it can also be used effectively for laboratory applications such as:
Plasma cleaning of generic parts for surface cleaning and activation for organic contamination removal
Plasma cleaning before coating processes (PVD, CVD, electroplating, Atomic Layer Deposition (ALD), dip coating, spin coating...)
Plasma cleaning before paint application
Plasma activation and functionalization of plastic materials (PE, PP, PDMS...)
Thin-layer oxide removal on metal parts
Juno's versatility extends to a wide range of applications within the Semiconductors, Automotive and Electronics industries.
Specifications
Machine type
Standalone batch plasma cleaner
Footprint
905W x 1155L x 1988H mm
Plasma chamber configuration
4 shelves with 4 couples of powered electrode and ground electrode
Max product size
393W x 354L x 382H mm
Min product size
N/A
Plasma generator
600W RF Generator 13.56 MHz
Automatic tuning system
Gas Lines
2 Process gas lines with Mass Flow Controller
1 Purge line
Pumping system
Dry vacuum pump 1000 L/min
Controller
Win10 LTSC PC with fieldbus
21" Touchscreen
Proprietary SCI software
Facilities
Single phase 110-240V 50/60 Hz, 2.5KVA
CDA 5 to 6 bar
Process gas pressure 0.5 to 1.5 bar
Exhaust port 25 mm OD
Certifications
CE, S2, S8, Cleanroom ISO7 (10k)
Options
Kit for using pure hydrogen and hydrogen generator
Dry vacuum pump 1670 L/min
Compare SCI Systems
Category
Batch
Batch
Batch
Machine type
Standalone batch plasma cleaner
Table-top batch plasma cleaner
Standalone batch plasma cleaner or desmearing system
Footprint
905W x 1155L x 1988H mm
670W x 948L x 812H mm
1503W x 1820L x 2101H mm
Plasma chamber configuration
4 shelves with 4 couples of powered electrode and ground electrode
4 shelves with 4 couples of powered electrode and ground electrode
4 shelves with 4 couples of powered electrode and ground electrode OR 4 holders for PCB desmearing
Max product size
393W x 354L x 382H mm
350W x 325L x 217H mm
500W X 520L X 625H mm
Min product size
N/A
N/A
N/A
Plasma generator
600W RF Generator 13.56 MHz
Automatic tuning system
300W RF Generator 13.56 MHz
Automatic tuning system
600W RF Generator 13.56 MHz
Automatic tuning system or
5kW generator at 40 kHz
Gas lines
2 Process gas lines with Mass Flow Controller
1 Purge line
2 Process gas lines with Mass Flow Controller
2 Process gas lines with Mass Flow Controller
1 Purge line
Pumping system
Dry vacuum pump 1000 L/min
Dry vacuum pump 250 L/min
Dry vacuum pump 1670 L/min or
Dry vacuum pump 1830 L/min plus booster pump at 8400 L/min
Controller
Win10 LTSC PC with fieldbus
21" Touchscreen
Proprietary SCI software
Win10 LTSC PC with fieldbus
16" Touchscreen
Proprietary SCI software
Win10 LTSC PC with fieldbus
21" Touchscreen
Proprietary SCI software
Facilities
Single phase 110-240V 50/60 Hz, 2.5KVA
CDA 5 to 6 bar
Process gas pressure 0.5 to 1.5 bar
Exhaust port 25 mm OD
Single phase 110-240V 50/60 Hz, 2.5KVA
CDA 5 to 6 bar
Process gas pressure 0.5 to 1.5 bar
Exhaust port 25 mm OD
Single phase 110-240V 50/60 Hz
CDA 5 to 6 bar
Process gas pressure 0.5 to 1.5 bar
Exhaust port 40 mm OD
Certifications
CE, S2, S8, Cleanroom ISO7 (10k)
CE, S2, S8, Cleanroom ISO7 (10k)
CE, S2, S8, Cleanroom ISO7 (10k)
Options
Kit for using pure hydrogen and hydrogen generator
Dry vacuum pump 1670 L/min
Purge line
600 W RF Generator
600 L/min dry vacuum pump (external)
Kit for using pure hydrogen and hydrogen generator
Dry vacuum pump 5000 L/min
Kit for using pure hydrogen and hydrogen generator
