CDS-2P

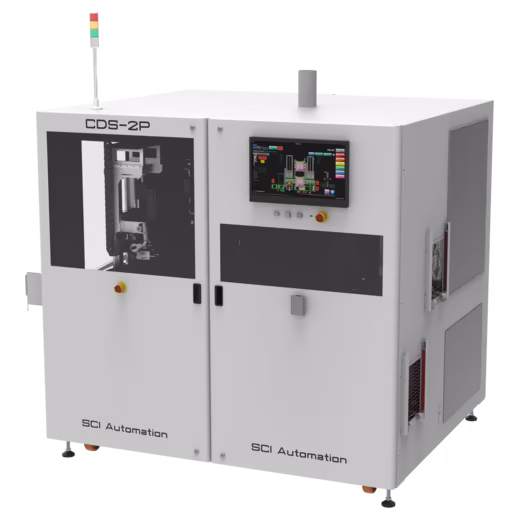

Automated Vacuum Degassing Station
CDS-2P Vacuum Degassing Applications
CDS-2P is an automated vacuum degassing station that removes the air trapped in epoxy before it cures. It was developed for assemblies with gaps of around 0.2 mm, which the epoxy fills by gravity and surface tension once plasma treatment has made the surfaces wettable. Any bubble trapped on the way would cure into a void.
The system features two independent vacuum chambers, each with a dedicated 250 L/min dry vacuum pump and nitrogen line. Every cycle follows a programmed pressure profile: a controlled descent lets the bubbles expand and escape without pushing the epoxy out of the gap, a dwell holds the target pressure, and a controlled nitrogen raise brings the parts back to atmosphere. The vacuum valve regulates each descent and the nitrogen valve each raise, and a recipe can chain any number of descent, dwell and raise steps.
CDS-2P works with carriers and magazines. Carriers arrive on a conveyor and are loaded into magazines, horizontally or flipped 90° for vertical insertion. Each full magazine goes to the first free chamber and, once degassed, on to the next process, so operators never handle parts with uncured epoxy.
It complements our plasma systems on the same line: plasma treatment makes the surfaces wettable so the epoxy flows into the gap, and CDS-2P removes the air the epoxy carries in with it.
The main applications of CDS-2P are:
- Degassing of epoxy filled into narrow gaps
- Void reduction in adhesive bond lines
- Degassing of underfill and potting compounds
- Automatic vacuum processes with programmable pressure profiles
Like all SCI production systems, CDS-2P runs the SCI software on an industrial Windows PC with a 21.5" touch screen: full manual and automatic operation, independent cycle control and real-time pressure display for each chamber, user access levels, programs defining the whole pressure profile, and automatic advanced logging.
CDS-2P Vacuum Degassing Station Specifications
Machine Type
Automated Vacuum Degassing Station
Footprint
2226W x 1835L x 1908H mm
Weight 1600 kg
Vacuum chambers
2 independent vacuum chambers operating in parallel
Nickel-coated aluminium chambers 280W x 346L x 360H mm (34.9 L each)
Max product size
Magazine: 180W x 330L x 280H mm
Min product size
Magazine: 180W x 180L x 200H mm
Pressure control
Programmable descent, dwell and raise steps
Vacuum valve for each descent, N2 valve for each raise
Capacitive gauge 1 to 1000 mbar
Gas lines
1 N2 line per chamber
Manual flowmeter with needle valve, 4 to 50 L/min
Pumping system
2 dry vacuum pumps 250 L/min, 1 per chamber
Pump ultimate pressure 0.08 mbar
Controller
Win11 LTSC PC with fieldbus 21.5" Touchscreen
Proprietary SCI software
Facilities
Three phase 380-415V 50/60 Hz 5.5KVA
CDA 5 to 6 bar
N2 pressure 1 to 1.5 bar
N2 purity 99% or better
Swagelok 6 mm OD gas fittings
Exhaust port 40 mm OD
Certifications
CE S2 S8 Cleanroom ISO7 (10k)
Options
Carrier and magazine handling adapted to customer parts
